Automate your business.

Upgrade your workflow.

Discover the future of automation with our AMR IL 1200.

Autonomous Mobile Robot IL 1200

A robot by itself won’t master your challenges. But when it’s fully integrated, the sky is the limit. Learn how to make the most of your intralogistics with autonomous material flows, smart Fleet Master Control software, and end-to-end 24 / 7 support.

Highly efficient.

Support
Support

Get proactive support in every stage, from planning across implementation to maintenance.

Compatibility
Compatibility

Enjoy knowing that you can integrate all your processes in a matter of days – without disrupting ongoing operations.

Efficiency
Efficiency

Maximize efficiency by tapping your fleet’s full performance potential and slashing costs at the same time.

Safety
Safety

Maximize safety for people at your site and using your products while ensuring reliable material flows.

Capacity
Capacity

Count on a power-packed unit for effortlessly lifting items that weigh up to 1200 kg.

Handling
Handling

Stay in charge with our Fleet Master Control software. Benefit from a smart charging strategy and remote diagnostics.

Attention to details.

Our relationships with customers are sustainable and trust-based. Although our products are technical, our personal interactions add essential value.

  • Empathy for people and machines
  • Deep understanding of intralogistical challenges
  • Ability to scale up in terms of size and regional footprint
  • Multiple years of reliable use in Continental plants
  • More than 150 years of technological experience and expertise

Attention to details.

Our relationships with customers are sustainable and trust-based. Although our products are technical, our personal interactions add essential value.

  • Empathy for people and machines
  • Deep understanding of intralogistical challenges
  • Ability to scale up in terms of size and regional footprint
  • Multiple years of reliable use in Continental plants
  • More than 150 years of technological experience and expertise

Our top performers for your goods.

Some things require more tailored attention than a conventional warehouse can deliver. Expand the range of possible applications with changes that are precisely matched to recurring intralogistical processes.

AMR IL 1200 LU

Lifting Unit for picking up and transporting carts. Use case: carts.
AMR IL 1200 TR

Top roller modules from our partner ROEQ. Fixed-height version. Version with automatic height adjustment.
AMR IL 1200 LM

Load Module for moving EU / industrial pallets and boxes. Use case: pallets.

Take it to the next level on-site.

Our intelligent, user-friendly Fleet Master Control software is the AMR solution’s core. The intuitive user interface makes it easy to add and customize routes. Maps and dashboards help you consistently track your AMR fleet, shipping runs, and battery charging operations in real time.

Roller Conveyer Solution
+
Lifting Unit
+
Top Roller
+
Load Module

Roller Conveyer Solution

Roller Conveyer Solution

Roller Conveyer Solution

Dimensions that brighten up your prospects.

Full collaborative interaction with surroundings
Autonomous navigation
Ultra-compact design
Top speed of 2.0 m / s
AMR IL 1200

Let’s get more specific.

Dimensions

Length × width × height
Weight
Ground clearance

1,455 mm × 630 mm × 225 mm
240 kg
28 mm

Performance Characteristics

Rotation diameters
Navigation
Position accuracy

260 cm
Autonomous
Fine positioning: ± 5 mm

Power Supply

Battery type
Charging current
Loading strategy
Loading time

Li-Ion / 48 V / 47 Ah
25 A / max. 30 A
Opportunity Charging
1:20 h

Environment

Ambient temperature
Humidity

5°C – 40°C
10 % – 90 % @ 39°C, noncondensing

Safety

Sensors and safety functions


Detection range
Safety standards for Industrial Vehicles


IP Code

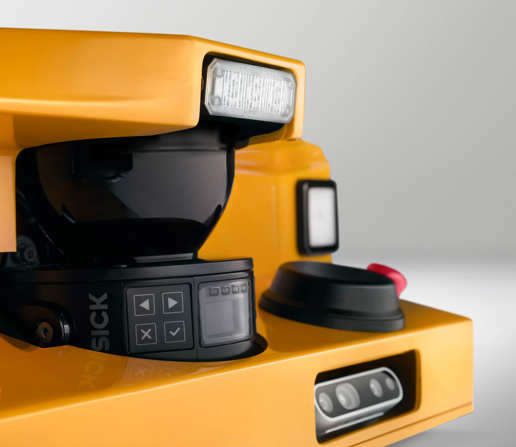

4 × LIDAR Laser Scanner, 2 × 3D camera,
4 × emergency stop button, 2 × red light, optional: signal tower
360°
MRL 2006 / 42 / EG, EMV RL 2014 / 30 / EU, RED RL 2014 / 53 / EU, EN ISO 13849-1:2015, EN ISO 13849-2:2012, EN 1175:2020, CE, ISO 3691-4:2020
IP20

Connections

Wi-Fi link
Ultra-wideband (UWB) ready
Integration
Manual control

2.4 GHz and 5 GHz supported, 2 antennas
Yes
VDA 5050 compatible
USB controller, control via laptop computer or mobile phone

Dimensions

Length × width × height
Weight
Ground clearance

1,455 mm × 630 mm × 225 mm
240 kg
28 mm

Performance Characteristics

Rotation diameters
Navigation
Position accuracy

260 cm
Autonomous
Fine positioning: ± 5 mm

Power Supply

Battery type
Charging current
Loading strategy
Loading time

Li-Ion / 48 V / 47 Ah
25 A / max. 30 A
Opportunity Charging
1:20 h

Environment

Ambient temperature
Humidity

5°C – 40°C
10 % – 90 % @ 39°C, noncondensing

Safety

Sensors and safety functions


Detection range
Safety standards for Industrial Vehicles


IP Code

4 × LIDAR Laser Scanner, 2 × 3D camera,
4 × emergency stop button, 2 × red light, optional: signal tower
360°
MRL 2006 / 42 / EG, EMV RL 2014 / 30 / EU, RED RL 2014 / 53 / EU, EN ISO 13849-1:2015, EN ISO 13849-2:2012, EN 1175:2020, CE, ISO 3691-4:2020
IP20

Connections

Wi-Fi link
Ultra-wideband (UWB) ready
Integration
Manual control

2.4 GHz and 5 GHz supported, 2 antennas
Yes
VDA 5050 compatible
USB controller, control via laptop computer or mobile phone

Support you can count on.

Our AMRs keep your processes running smoothly and reliably. And if there’s ever a need, you can count on us: we’re available 24 / 7 to provide assistance and support.

Analysis
Analysis

We work with you to identify the areas and processes that can benefit from automation with our AMR.

Implementation
Implementation

We install the AMR and get it up and running, then teach you to confidently manage the Fleet Master Control system on your own.

Optimization
Optimization

Processes, goods, and materials can change. We’re available to optimize your AMRs performance whenever there’s a need.
